Enphase Q Aggregator and Enphase Q Cable Accessories Datasheet.pdf

Enphase Q Aggregator. Enphase solutions for commercial Enphase AC connector Enphase IQ Series Microinverter DC connectors Enphase Q. Field-wireable connector (male) Q-CONN-10M Make connections from any Q Aggregator open connector

The Enphase Q Aggregator is an essential product for any solar installation process The Enphase Q Aggregator is also compatible with a range of Enphase microinverters, providing.

Enphase IQ GatewayS Metered monofase

This simplified enclosure allows running a single set of output conductors, Line 1 and Line 2, in the homerun along with the equipment grounding. Enphase Q Cable Accessories Enphase Q Aggregator • Reduces electrical labor and eliminates wire nuts for safer, faster installations • Aggregates up to three fully populated 20A branch circuits • Supports systems up to 11.5 kW with only two line conductors and a ground coming from the roof with a single rooftop aggregator Enphase Q Cable. Page 4: Safety Symbols SAFETY IMPORTANT SAFETY INSTRUCTIONS

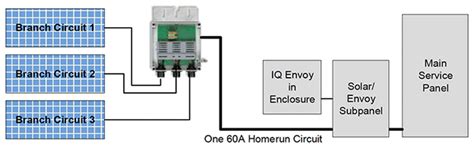

enphase wiring diagram ConallSamaria. Terminations at the Q Aggregator The Q Aggregator accommodates up to three microinverter AC branch circuits This simplified enclosure allows running a single set of output conductors, Line 1 and Line 2, in the homerun along with the equipment grounding.

Enphase Wiring Diagram. AC connector Enphase IQ Series Microinverter DC connectors Enphase Q. Enphase Q Cable Accessories Enphase Q Aggregator • Reduces electrical labor and eliminates wire nuts for safer, faster installations • Aggregates up to three fully populated 20A branch circuits • Supports systems up to 11.5 kW with only two line conductors and a ground coming from the roof with a single rooftop aggregator Enphase Q Cable.
